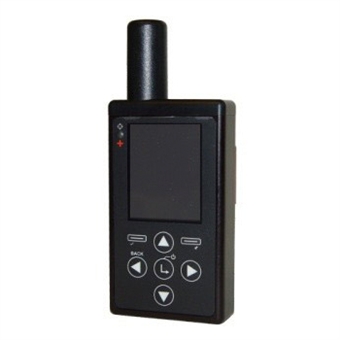

SHOUT nano

The SHOUT nano is our second-generation handheld satellite tracker and messaging device. It is about 45% smaller than then the SHOUT and weighs half as much while retaining all the functions and features of the SHOUT. The nano has a high resolution color LCD with menu options displayed as icons instead of line-text.

The nano is designed with ultra-low power consumption electronics drawing less than 35µA during sleep. With an internal 1.95 A-Hr rechargeable Li-Ion battery, it can send a position report every hour for up to two months (about 1,500 reports). The SHOUT nano is equipped with on-screen keyboards supporting transmission of free-text, canned messages and a combination of free-text and canned messages. The device can periodically wake up from sleep to send its position report to a command center. A guarded 911 button is used for immediate emergency/alert notifications. Data are packaged in either standard or 256-bit AES encrypted format.

Dimensions:    102 mm x 56 mm x 20 mm (4.0" x 2.2" x 0.8")
Weight:    184 g (6.5 oz)

Battery:    Rechargeable Li-Ion
     1.95 A-Hr Single Cell
     3.6V to 4.2V

I/O Interface:    Standard USB
Software Interface:    AT Commands through USB

Operating Temp:    -40°C to +85°C (-40°F to +185°F)
Operating Humidity:    < 75% RH

Operating Frequency:      1616 to 1626.5 MHz
GPS Frequency:    1575.42 MHz (L1 carrier)
